调度器¶

// pkg/scheduler/algorithmprovider/registry.go

func getDefaultConfig() *schedulerapi.Plugins {
    return &schedulerapi.Plugins{
        QueueSort: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: queuesort.Name},
            },
        },
        PreFilter: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: noderesources.FitName},
                {Name: nodeports.Name},
                {Name: podtopologyspread.Name},
                {Name: interpodaffinity.Name},
                {Name: volumebinding.Name},
            },
        },
        Filter: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: nodeunschedulable.Name},
                {Name: noderesources.FitName},
                {Name: nodename.Name},
                {Name: nodeports.Name},
                {Name: nodeaffinity.Name},
                {Name: volumerestrictions.Name},
                {Name: tainttoleration.Name},
                {Name: nodevolumelimits.EBSName},
                {Name: nodevolumelimits.GCEPDName},
                {Name: nodevolumelimits.CSIName},
                {Name: nodevolumelimits.AzureDiskName},
                {Name: volumebinding.Name},
                {Name: volumezone.Name},
                {Name: podtopologyspread.Name},
                {Name: interpodaffinity.Name},
            },
        },
        PostFilter: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: defaultpreemption.Name},
            },
        },
        PreScore: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: interpodaffinity.Name},
                {Name: podtopologyspread.Name},
                {Name: tainttoleration.Name},
            },
        },
        Score: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: noderesources.BalancedAllocationName, Weight: 1},
                {Name: imagelocality.Name, Weight: 1},
                {Name: interpodaffinity.Name, Weight: 1},
                {Name: noderesources.LeastAllocatedName, Weight: 1},
                {Name: nodeaffinity.Name, Weight: 1},
                {Name: nodepreferavoidpods.Name, Weight: 10000},
                // Weight is doubled because:
                // - This is a score coming from user preference.
                // - It makes its signal comparable to NodeResourcesLeastAllocated.
                {Name: podtopologyspread.Name, Weight: 2},
                {Name: tainttoleration.Name, Weight: 1},
            },
        },
        Reserve: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: volumebinding.Name},
            },
        },
        PreBind: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: volumebinding.Name},
            },
        },
        Bind: &schedulerapi.PluginSet{
            Enabled: []schedulerapi.Plugin{
                {Name: defaultbinder.Name},
            },
        },
    }
}

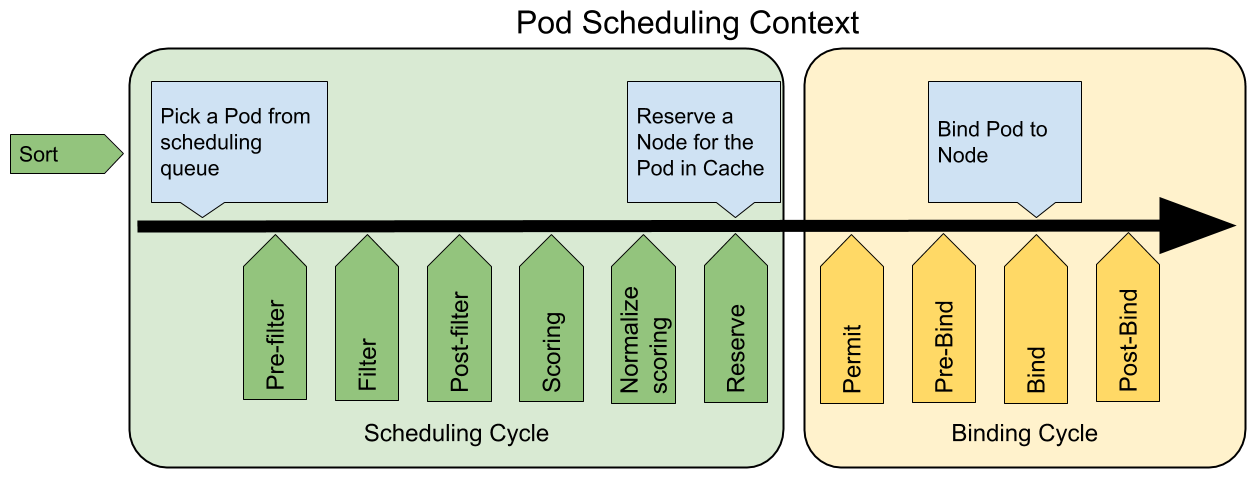

// Plugin is the parent type for all the scheduling framework plugins.
type Plugin interface {
    Name() string
}

type QueueSortPlugin interface {
    Plugin
    Less(*PodInfo, *PodInfo) bool
}

// PreFilterPlugin is an interface that must be implemented by "prefilter" plugins.
// These plugins are called at the beginning of the scheduling cycle.
type PreFilterPlugin interface {
    Plugin
    PreFilter(pc *PluginContext, p *v1.Pod) *Status
}

// FilterPlugin is an interface for Filter plugins. These plugins are called at the
// filter extension point for filtering out hosts that cannot run a pod.
// This concept used to be called 'predicate' in the original scheduler.
// These plugins should return "Success", "Unschedulable" or "Error" in Status.code.
// However, the scheduler accepts other valid codes as well.
// Anything other than "Success" will lead to exclusion of the given host from
// running the pod.
type FilterPlugin interface {
    Plugin
    Filter(pc *PluginContext, pod *v1.Pod, nodeName string) *Status
}

// PostFilterPlugin is an interface for Post-filter plugin. Post-filter is an
// informational extension point. Plugins will be called with a list of nodes
// that passed the filtering phase. A plugin may use this data to update internal
// state or to generate logs/metrics.
type PostFilterPlugin interface {
    Plugin
    PostFilter(pc *PluginContext, pod *v1.Pod, nodes []*v1.Node, filteredNodesStatuses NodeToStatusMap) *Status
}

// ScorePlugin is an interface that must be implemented by "score" plugins to rank
// nodes that passed the filtering phase.
type ScorePlugin interface {
    Plugin
    Score(pc *PluginContext, p *v1.Pod, nodeName string) (int, *Status)
}

// ScoreWithNormalizePlugin is an interface that must be implemented by "score"
// plugins that also need to normalize the node scoring results produced by the same
// plugin's "Score" method.
type ScoreWithNormalizePlugin interface {
    ScorePlugin
    NormalizeScore(pc *PluginContext, p *v1.Pod, scores NodeScoreList) *Status
}

// ReservePlugin is an interface for Reserve plugins. These plugins are called
// at the reservation point. These are meant to update the state of the plugin.
// This concept used to be called 'assume' in the original scheduler.
// These plugins should return only Success or Error in Status.code. However,
// the scheduler accepts other valid codes as well. Anything other than Success
// will lead to rejection of the pod.
type ReservePlugin interface {
    Plugin
    Reserve(pc *PluginContext, p *v1.Pod, nodeName string) *Status
}

// PreBindPlugin is an interface that must be implemented by "prebind" plugins.
// These plugins are called before a pod being scheduled.
type PreBindPlugin interface {
    Plugin
    PreBind(pc *PluginContext, p *v1.Pod, nodeName string) *Status
}

// PostBindPlugin is an interface that must be implemented by "postbind" plugins.
// These plugins are called after a pod is successfully bound to a node.
type PostBindPlugin interface {
    Plugin
    PostBind(pc *PluginContext, p *v1.Pod, nodeName string)
}

// UnreservePlugin is an interface for Unreserve plugins. This is an informational
// extension point. If a pod was reserved and then rejected in a later phase, then
// un-reserve plugins will be notified. Un-reserve plugins should clean up state
// associated with the reserved Pod.
type UnreservePlugin interface {
    Plugin
    Unreserve(pc *PluginContext, p *v1.Pod, nodeName string)
}

// PermitPlugin is an interface that must be implemented by "permit" plugins.
// These plugins are called before a pod is bound to a node.
type PermitPlugin interface {
    Plugin
    Permit(pc *PluginContext, p *v1.Pod, nodeName string) (*Status, time.Duration)
}

// BindPlugin is an interface that must be implemented by "bind" plugins. Bind
// plugins are used to bind a pod to a Node.
type BindPlugin interface {
    Plugin
    Bind(pc *PluginContext, p *v1.Pod, nodeName string) *Status
}

apiVersion: kubescheduler.config.k8s.io/v1alpha1
kind: KubeSchedulerConfiguration

...

plugins:
  reserve:
    enabled:
    - name: foo
    - name: bar
    disabled:
    - name: baz
  preBind:
    enabled:
    - name: foo
    disabled:
    - name: baz

pluginConfig:
- name: foo
  args: >
    foo插件可以解析的任意内容

apiVersion: kubescheduler.config.k8s.io/v1alpha1
kind: KubeSchedulerConfiguration

...

plugins:
  reserve:
    enabled:
    - name: bar
    - name: foo
    disabled:
    - name: foo

// pkg/scheduler/algorithmprovider/registry.go
func NewRegistry() Registry {
    return Registry{
        // FactoryMap:
        // New plugins are registered here.
        // example:
        // {
        //  stateful_plugin.Name: stateful.NewStatefulMultipointExample,
        //  fooplugin.Name: fooplugin.New,
        // }
    }
}

// Option configures a framework.Registry.
type Option func(framework.Registry) error

// NewSchedulerCommand creates a *cobra.Command object with default parameters and registryOptions
func NewSchedulerCommand(registryOptions ...Option) *cobra.Command {
  ......
}

// WithPlugin creates an Option based on plugin name and factory.
func WithPlugin(name string, factory framework.PluginFactory) Option {
    return func(registry framework.Registry) error {
        return registry.Register(name, factory)
    }
}

func main() {
    rand.Seed(time.Now().UTC().UnixNano())

    command := app.NewSchedulerCommand(
        app.WithPlugin(sample.Name, sample.New),
    )

    logs.InitLogs()
    defer logs.FlushLogs()

    if err := command.Execute(); err != nil {
        _, _ = fmt.Fprintf(os.Stderr, "%v\n", err)
        os.Exit(1)
    }

}

type PluginFactory = func(configuration *runtime.Unknown, f FrameworkHandle) (Plugin, error)

// 插件名称
const Name = "sample-plugin"

type Args struct {
    FavoriteColor  string `json:"favorite_color,omitempty"`
    FavoriteNumber int    `json:"favorite_number,omitempty"`
    ThanksTo       string `json:"thanks_to,omitempty"`
}

type Sample struct {
    args   *Args
    handle framework.FrameworkHandle
}

func (s *Sample) Name() string {
    return Name
}

func (s *Sample) PreFilter(pc *framework.PluginContext, pod *v1.Pod) *framework.Status {
    klog.V(3).Infof("prefilter pod: %v", pod.Name)
    return framework.NewStatus(framework.Success, "")
}

func (s *Sample) Filter(pc *framework.PluginContext, pod *v1.Pod, nodeName string) *framework.Status {
    klog.V(3).Infof("filter pod: %v, node: %v", pod.Name, nodeName)
    return framework.NewStatus(framework.Success, "")
}

func (s *Sample) PreBind(pc *framework.PluginContext, pod *v1.Pod, nodeName string) *framework.Status {
    if nodeInfo, ok := s.handle.NodeInfoSnapshot().NodeInfoMap[nodeName]; !ok {
        return framework.NewStatus(framework.Error, fmt.Sprintf("prebind get node info error: %+v", nodeName))
    } else {
        klog.V(3).Infof("prebind node info: %+v", nodeInfo.Node())
        return framework.NewStatus(framework.Success, "")
    }
}

//type PluginFactory = func(configuration *runtime.Unknown, f FrameworkHandle) (Plugin, error)
func New(configuration *runtime.Unknown, f framework.FrameworkHandle) (framework.Plugin, error) {
    args := &Args{}
    if err := framework.DecodeInto(configuration, args); err != nil {
        return nil, err
    }
    klog.V(3).Infof("get plugin config args: %+v", args)
    return &Sample{
        args: args,
        handle: f,
    }, nil
}

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sample-scheduler-clusterrole
rules:
  - apiGroups:
      - ""
    resources:
      - endpoints
      - events
    verbs:
      - create
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - pods
    verbs:
      - delete
      - get
      - list
      - watch
      - update
  - apiGroups:
      - ""
    resources:
      - bindings
      - pods/binding
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - pods/status
    verbs:
      - patch
      - update
  - apiGroups:
      - ""
    resources:
      - replicationcontrollers
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - apps
      - extensions
    resources:
      - replicasets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - apps
    resources:
      - statefulsets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - policy
    resources:
      - poddisruptionbudgets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - persistentvolumeclaims
      - persistentvolumes
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "storage.k8s.io"
    resources:
      - storageclasses
      - csinodes
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "coordination.k8s.io"
    resources:
      - leases
    verbs:
      - create
      - get
      - list
      - update
  - apiGroups:
      - "events.k8s.io"
    resources:
      - events
    verbs:
      - create
      - patch
      - update
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: sample-scheduler-sa
  namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sample-scheduler-clusterrolebinding
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: sample-scheduler-clusterrole
subjects:
- kind: ServiceAccount
  name: sample-scheduler-sa
  namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: scheduler-config
  namespace: kube-system
data:
  scheduler-config.yaml: |
    apiVersion: kubescheduler.config.k8s.io/v1alpha1
    kind: KubeSchedulerConfiguration
    schedulerName: sample-scheduler
    leaderElection:
      leaderElect: true
      lockObjectName: sample-scheduler
      lockObjectNamespace: kube-system
    plugins:
      preFilter:
        enabled:
        - name: "sample-plugin"
      filter:
        enabled:
        - name: "sample-plugin"
      preBind:
        enabled:
        - name: "sample-plugin"
    pluginConfig:
    - name: "sample-plugin"
      args:
        favorite_color: "#326CE5"
        favorite_number: 7
        thanks_to: "thockin"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sample-scheduler
  namespace: kube-system
  labels:
    component: sample-scheduler
spec:
  replicas: 1
  selector:
    matchLabels:
      component: sample-scheduler
  template:
    metadata:
      labels:
        component: sample-scheduler
    spec:
      serviceAccount: sample-scheduler-sa
      priorityClassName: system-cluster-critical
      volumes:
        - name: scheduler-config
          configMap:
            name: scheduler-config
      containers:
        - name: scheduler-ctrl
          image: cnych/sample-scheduler:v0.1.6
          imagePullPolicy: IfNotPresent
          args:
            - sample-scheduler-framework
            - --config=/etc/kubernetes/scheduler-config.yaml
            - --v=3
          resources:
            requests:
              cpu: "50m"
          volumeMounts:
            - name: scheduler-config
              mountPath: /etc/kubernetes

apiVersion: apps/v1
kind: Deployment
metadata:
  name: test-scheduler
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test-scheduler
  template:
    metadata:
      labels:
        app: test-scheduler
    spec:
      schedulerName: sample-scheduler
      containers:
      - image: nginx
        imagePullPolicy: IfNotPresent
        name: nginx
        ports:
        - containerPort: 80

$ kubectl get pods -n kube-system -l component=sample-scheduler
NAME                               READY   STATUS    RESTARTS   AGE
sample-scheduler-7c469787f-rwhhd   1/1     Running   0          13m
$ kubectl logs -f sample-scheduler-7c469787f-rwhhd -n kube-system
I0104 08:24:22.087881       1 scheduler.go:530] Attempting to schedule pod: default/test-scheduler-6d779d9465-rq2bb
I0104 08:24:22.087992       1 plugins.go:23] prefilter pod: test-scheduler-6d779d9465-rq2bb
I0104 08:24:22.088657       1 plugins.go:28] filter pod: test-scheduler-6d779d9465-rq2bb, node: ydzs-node1
I0104 08:24:22.088797       1 plugins.go:28] filter pod: test-scheduler-6d779d9465-rq2bb, node: ydzs-node2
I0104 08:24:22.088871       1 plugins.go:28] filter pod: test-scheduler-6d779d9465-rq2bb, node: ydzs-node3
I0104 08:24:22.088946       1 plugins.go:28] filter pod: test-scheduler-6d779d9465-rq2bb, node: ydzs-node4
I0104 08:24:22.088992       1 plugins.go:28] filter pod: test-scheduler-6d779d9465-rq2bb, node: ydzs-master
I0104 08:24:22.090653       1 plugins.go:36] prebind node info: &Node{ObjectMeta:{ydzs-node3   /api/v1/nodes/ydzs-node3 1ff6e228-4d98-4737-b6d3-30a5d55ccdc2 15466372 0 2019-11-10 09:05:09 +0000 UTC <nil> <nil> ......}
I0104 08:24:22.091761       1 factory.go:610] Attempting to bind test-scheduler-6d779d9465-rq2bb to ydzs-node3
I0104 08:24:22.104994       1 scheduler.go:667] pod default/test-scheduler-6d779d9465-rq2bb is bound successfully on node "ydzs-node3", 5 nodes evaluated, 4 nodes were found feasible. Bound node resource: "Capacity: CPU<4>|Memory<8008820Ki>|Pods<110>|StorageEphemeral<17921Mi>; Allocatable: CPU<4>|Memory<7906420Ki>|Pods<110>|StorageEphemeral<16912377419>.".

$ kubectl get pods
NAME                                      READY   STATUS    RESTARTS   AGE
test-scheduler-6d779d9465-rq2bb           1/1     Running   0          22m
$ kubectl get pod test-scheduler-6d779d9465-rq2bb -o yaml
......
restartPolicy: Always
schedulerName: sample-scheduler
securityContext: {}
serviceAccount: default
......

apiVersion: v1
kind: PriorityClass
metadata:
  name: high-priority
value: 1000000
globalDefault: false
description: "This priority class should be used for XYZ service pods only."

apiVersion: v1
kind: Pod
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  containers:
  - name: nginx
    image: nginx
    imagePullPolicy: IfNotPresent
  priorityClassName: high-priority
