DigestAuth¶

增加 Digest 身份认证

BasicAuth

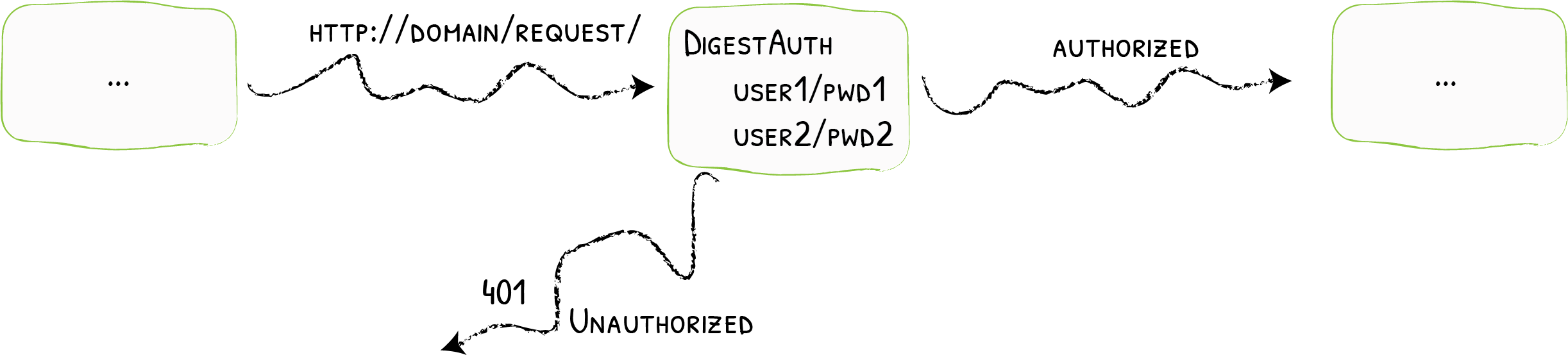

DigestAuth 中间件是一种将访问权限限制到已知用户的快速方法。

配置示例¶

Docker

# 声明用户列表
labels:
  - "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

Kubernetes

# 声明用户列表
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    secret: userssecret

# Kubernetes 中使用 secret 来进行认证，可以用下面得命令来生成：
# 用户 admin123 在 qq.com 的认证文件
# htdigets -c auth qq.com admin123
# kubectl create secret generic userssecret --from-file=auth

Consul Catalog

# 声明用户列表
- "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.digestauth.users": "test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"
}

Rancher

# 声明用户列表
labels:
  - "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

File (TOML)

# 声明用户列表
[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    users = [
      "test:traefik:a2688e031edb4be6a3797f3882655c05",
      "test2:traefik:518845800f9e2bfb1f1f740ec24f074e",
    ]

File (YAML)

# 声明用户列表
http:
  middlewares:
    test-auth:
      digestAuth:
        users:
          - "test:traefik:a2688e031edb4be6a3797f3882655c05"
          - "test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

配置选项¶

Tip

使用 htdigest 生成密码。

`users`¶

The users 是授权用户的数组。每个用户需要使用这种 name:realm:encoded-password 格式声明。

如果同时提供了 users 和 usersFile，则两者将合并。usersFile 的内容优先于 users 中的值。
出于安全原因，Kubernetes IngressRoute 的用户字段 users 不存在，而应该使用 secret 字段。

Docker

labels:
  - "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    secret: authsecret

---
apiVersion: v1
kind: Secret
metadata:
  name: authsecret
  namespace: default

data:
  users: |2
    dGVzdDp0cmFlZmlrOmEyNjg4ZTAzMWVkYjRiZTZhMzc5N2YzODgyNjU1YzA1CnRlc3QyOnRyYWVmaWs6NTE4ODQ1ODAwZjllMmJmYjFmMWY3NDBlYzI0ZjA3NGUKCg==

Consul Catalog

- "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.digestauth.users": "test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"
}

Rancher

labels:
  - "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

File (TOML)

[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    users = [
      "test:traefik:a2688e031edb4be6a3797f3882655c05",
      "test2:traefik:518845800f9e2bfb1f1f740ec24f074e",
    ]

File (YAML)

http:
  middlewares:
    test-auth:
      digestAuth:
        users:
          - "test:traefik:a2688e031edb4be6a3797f3882655c05"
          - "test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

`usersFile`¶

usersFile 选项是指向外部文件的路径，该文件包含中间件的授权用户。

文件内容是 name:realm:encoded-password 格式的列表。

Docker

labels:
  - "traefik.http.middlewares.test-auth.digestauth.usersfile=/path/to/my/usersfile"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    secret: authsecret

---
apiVersion: v1
kind: Secret
metadata:
  name: authsecret
  namespace: default

data:
  users: |2
    dGVzdDokYXByMSRINnVza2trVyRJZ1hMUDZld1RyU3VCa1RycUU4d2ovCnRlc3QyOiRhcHIxJGQ5
    aHI5SEJCJDRIeHdnVWlyM0hQNEVzZ2dQL1FObzAK

Consul Catalog

- "traefik.http.middlewares.test-auth.digestauth.usersfile=/path/to/my/usersfile"

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.digestauth.usersfile": "/path/to/my/usersfile"
}

Rancher

labels:
  - "traefik.http.middlewares.test-auth.digestauth.usersfile=/path/to/my/usersfile"

File (TOML)

[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    usersFile = "/path/to/my/usersfile"

File (YAML)

http:
  middlewares:
    test-auth:
      digestAuth:
        usersFile: "/path/to/my/usersfile"

A file containing test/test and test2/test2

test:traefik:a2688e031edb4be6a3797f3882655c05
test2:traefik:518845800f9e2bfb1f1f740ec24f074e

`realm`¶

您可以使用 realm 选项自定义身份验证领域。默认值为 traefik。

Docker

labels:
  - "traefik.http.middlewares.test-auth.digestauth.realm=MyRealm"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    realm: MyRealm

Consul Catalog

- "traefik.http.middlewares.test-auth.digestauth.realm=MyRealm"

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.digestauth.realm": "MyRealm"
}

Rancher

labels:
  - "traefik.http.middlewares.test-auth.digestauth.realm=MyRealm"

File (TOML)

[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    realm = "MyRealm"

File (YAML)

http:
  middlewares:
    test-auth:
      digestAuth:
        realm: "MyRealm"

`headerField`¶

您可以使用 headerField 选项为经过身份验证的用户自定义标题字段。

Docker

labels:
  - "traefik.http.middlewares.my-auth.digestauth.headerField=X-WebAuth-User"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: my-auth
spec:
  digestAuth:
    # ...
    headerField: X-WebAuth-User

Consul Catalog

- "traefik.http.middlewares.my-auth.digestauth.headerField=X-WebAuth-User"

Marathon

"labels": {
  "traefik.http.middlewares.my-auth.digestauth.headerField": "X-WebAuth-User"
}

Rancher

labels:
  - "traefik.http.middlewares.my-auth.digestauth.headerField=X-WebAuth-User"

File (TOML)

[http.middlewares.my-auth.digestAuth]
  # ...
  headerField = "X-WebAuth-User"

File (YAML)

http:
  middlewares:
    my-auth:
      digestAuth:
        # ...
        headerField: "X-WebAuth-User"

`removeHeader`¶

将 removeHeader 选项设置为 true 以在将请求转发到您的服务之前删除授权标头。（默认值为 false ）

Docker

labels:
  - "traefik.http.middlewares.test-auth.digestauth.removeheader=true"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    removeHeader: true

Consul Catalog

- "traefik.http.middlewares.test-auth.digestauth.removeheader=true"

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.digestauth.removeheader": "true"
}

Rancher

labels:
  - "traefik.http.middlewares.test-auth.digestauth.removeheader=true"

File (TOML)

[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    removeHeader = true

File (YAML)

http:
  middlewares:
    test-auth:
      digestAuth:
        removeHeader: true

本节翻译作者：@罗立志
